Wire EDM Services for Precision Profiles and Hard Material Parts

Top Proto delivers Wire EDM services for engineering teams that need precise profiles, tight internal corners, thin-walled features, and geometries in hardened or difficult-to-machine materials that conventional cutting tools cannot produce cleanly. Our Wire EDM systems use a fine electrically charged wire to erode material along a programmed path without mechanical contact, achieving dimensional accuracy and edge quality that is independent of material hardness. We produce Wire EDM parts from prototype quantities through to production runs, with full dimensional inspection and material documentation on every order.

Get instant pricing, project lead times, and DFM feedback.

Accepted File Types: STEP, STP, SLDPRT, STL, DXF, X_T, X_B, IPT, CATPART, PRT, SAT, 3MF, JT

What is Wire EDM?

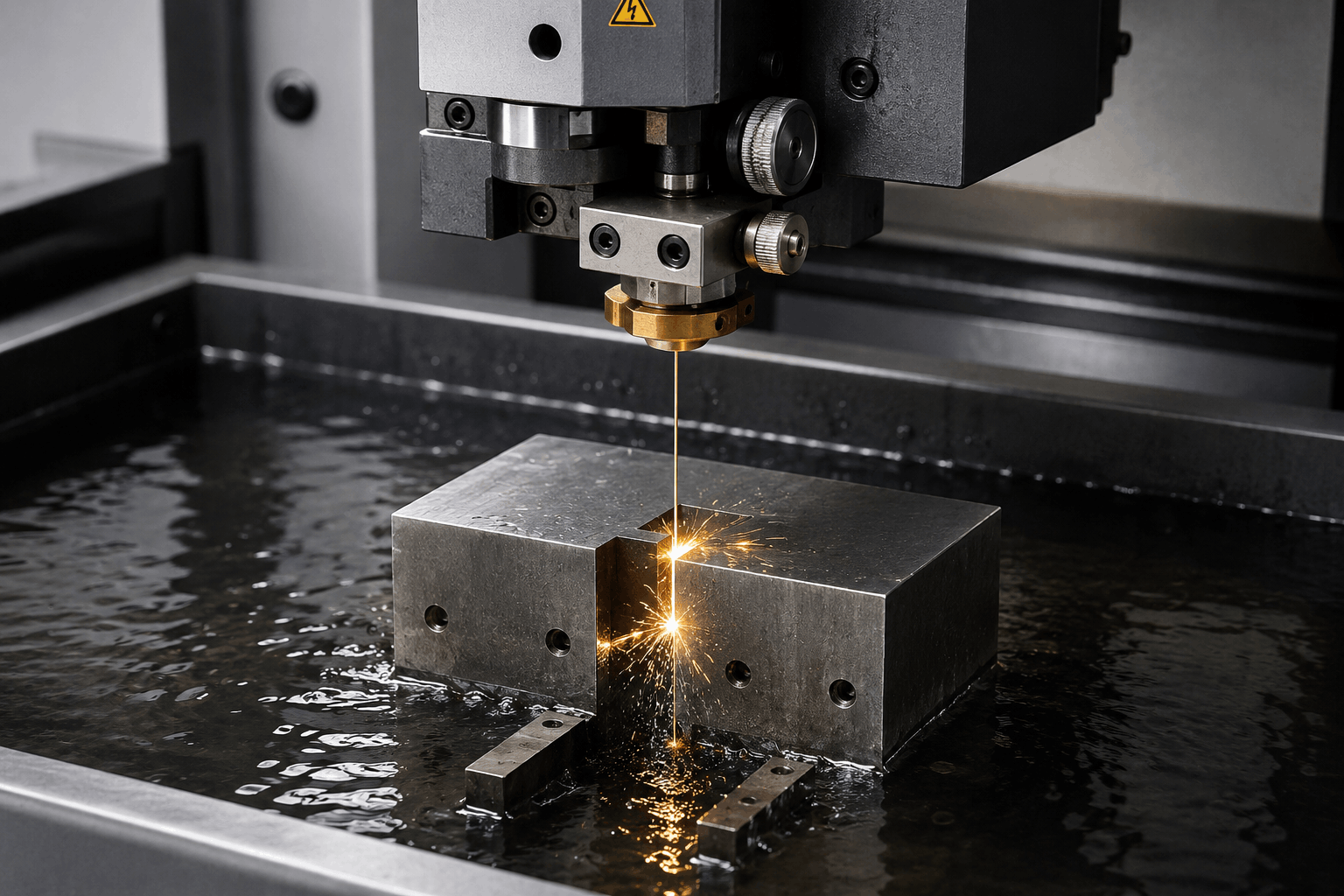

Wire EDM — Wire Electrical Discharge Machining — is a non-contact material removal process in which a thin, continuously moving wire electrode carries a high-frequency electrical discharge that erodes the workpiece material along the programmed cut path. The wire and workpiece are submerged in a dielectric fluid that flushes eroded material particles from the cut zone and controls the discharge energy. Because there is no mechanical contact between the wire and the workpiece, the process applies no cutting forces to the part, making it suitable for thin, delicate, and fragile geometries that would distort or break under conventional cutting tool loads.

At Top Proto, our Wire EDM systems process conductive materials — hardened tool steels, titanium, carbide, copper alloys, and stainless steel — to tolerances below +/-0.005mm on cut geometry. The wire follows the programmed path with submicron positioning accuracy, allowing complex profiles, sharp internal corners with radii approaching the wire diameter, and taper cuts to be produced with consistent geometry from the first part to the last.

Wire EDM

Non-contact wire erosion cutting for precise profiles, thin slots, sharp internal corners, and complex contours in hardened and difficult-to-machine conductive materials. No cutting forces applied to the workpiece.

See Detail CNC Routing

CNC Milling

Multi-axis milling for primary part geometry, combined with Wire EDM for features requiring corner sharpness or profile accuracy beyond what milling tools can achieve. Both processes available in our integrated facility.

See Detail Wire EDM

CNC Turning

Turning for cylindrical profiles combined with Wire EDM for axial slots, keyways, and precision profiles on turned components. Mill-turn and EDM operations performed within the same production program.

See Detail CNC Milling

5-Axis Machining

5-axis machining for complex outer geometry with Wire EDM applied for internal profiles, thin features, and hard material sections that require non-contact cutting to maintain dimensional integrity.

See Detail CNC Turning

Our Services

Top Proto is your go-to provider for advanced CNC machining, delivering high-precision parts across industries.

Why Choose Top Proto for Wire EDM Services?

Top Proto operates Wire EDM as an integrated capability alongside CNC milling, turning, and grinding. This means components requiring Wire EDM for specific features — internal profiles in hardened mold inserts, thin slots in tool steel, or precise contours in titanium structural parts — move directly from one process to the next without leaving the facility. Dimensional references established in the CNC setup are preserved through the EDM operation, maintaining positional accuracy between machined and EDM-cut features.

Our Wire EDM programs are prepared by our CAM engineers from your DXF or STEP files, with skim cut sequences applied to achieve the specified surface roughness and dimensional accuracy on finish cuts. Every Wire EDM part is measured dimensionally against your drawing before shipment. Inspection reports confirming cut geometry, profile accuracy, and surface condition are provided with every order.

Wire EDM Capabilities

Feature	Specification
Wire Diameter	0.1mm to 0.3mm, selected based on minimum internal corner radius requirement
Dimensional Tolerance	Down to +/-0.003mm on cut geometry with skim cut sequences
Surface Roughness	Ra 0.2 to Ra 1.6 depending on number of skim passes applied
Maximum Part Height	Up to 400mm workpiece height in standard machine configuration
Maximum Part Size	600 x 800mm XY working envelope; larger parts reviewed on request
Minimum Internal Corner Radius	Equal to wire radius plus spark gap, approximately 0.06mm for 0.1mm wire
Taper Cutting	Taper cuts up to 30 degrees from vertical available for die clearance and draft profiles
Materials Processed	All electrically conductive materials including hardened tool steels, titanium, carbide, stainless steel, aluminum, copper, and brass

Our Wire EDM Gallery Parts

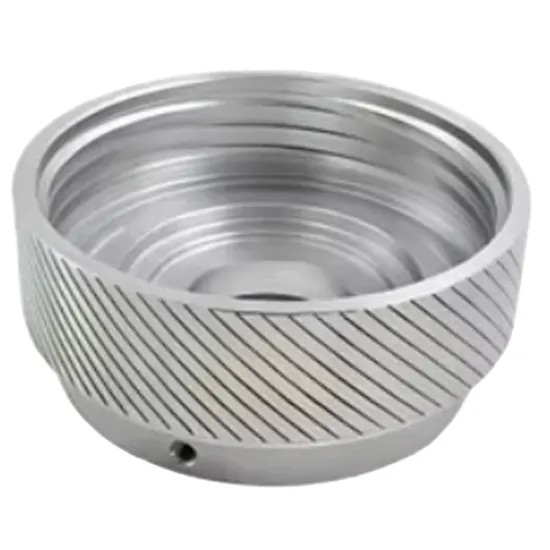

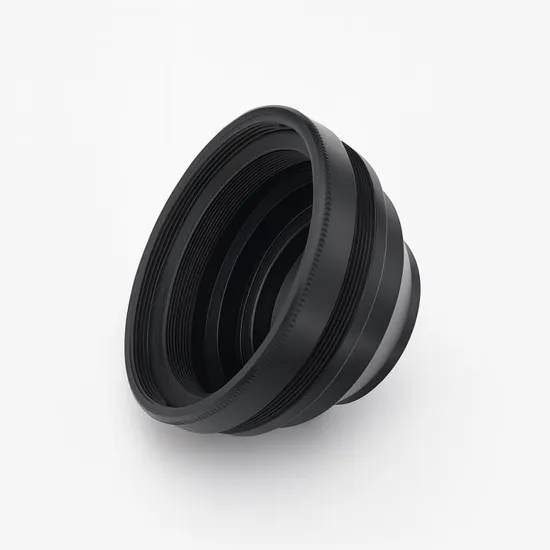

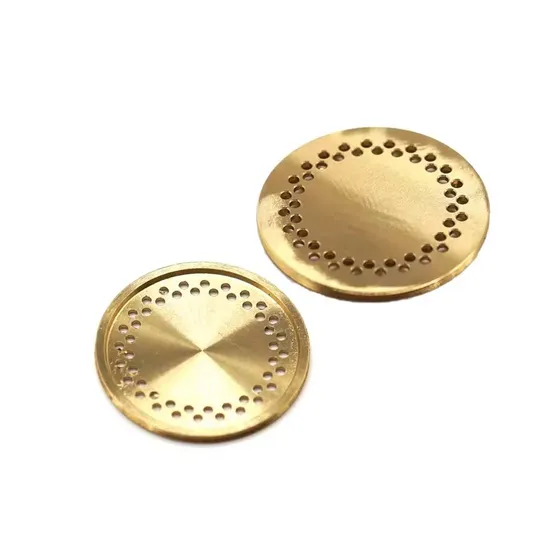

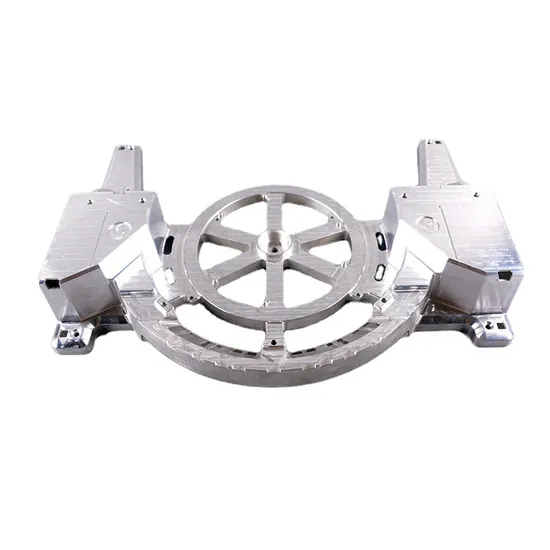

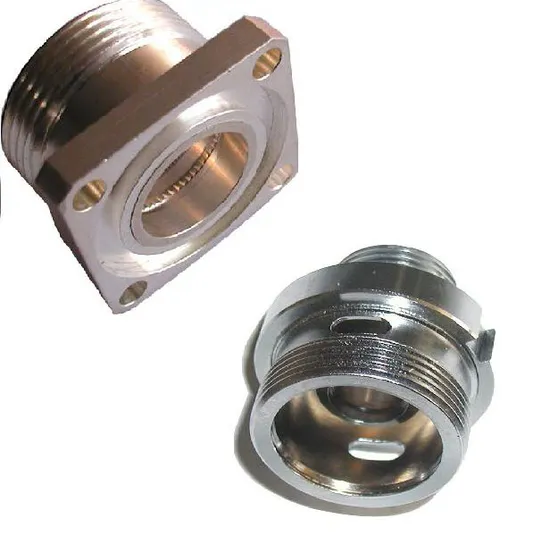

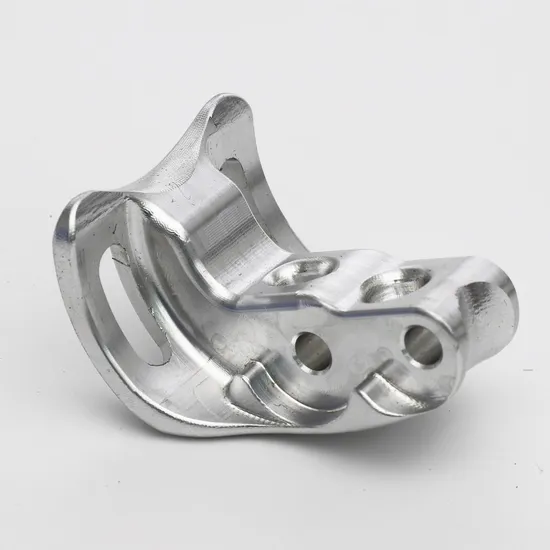

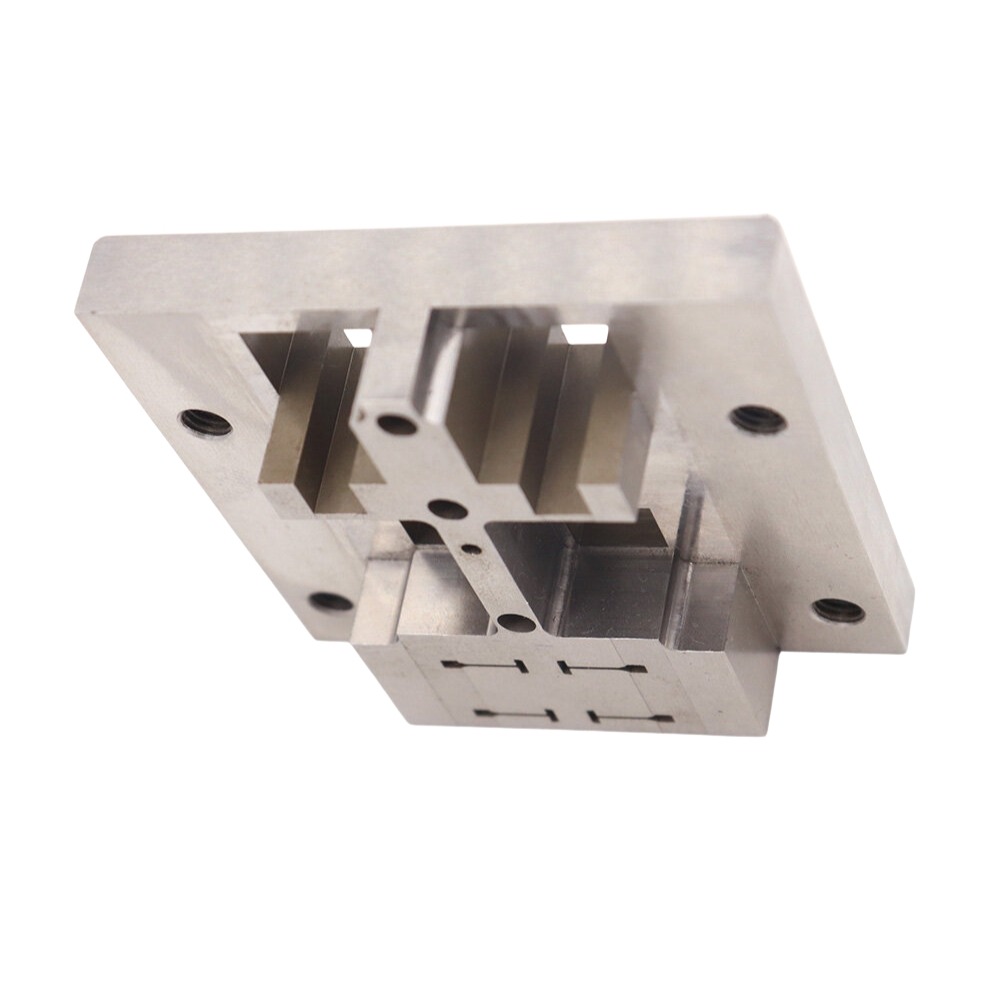

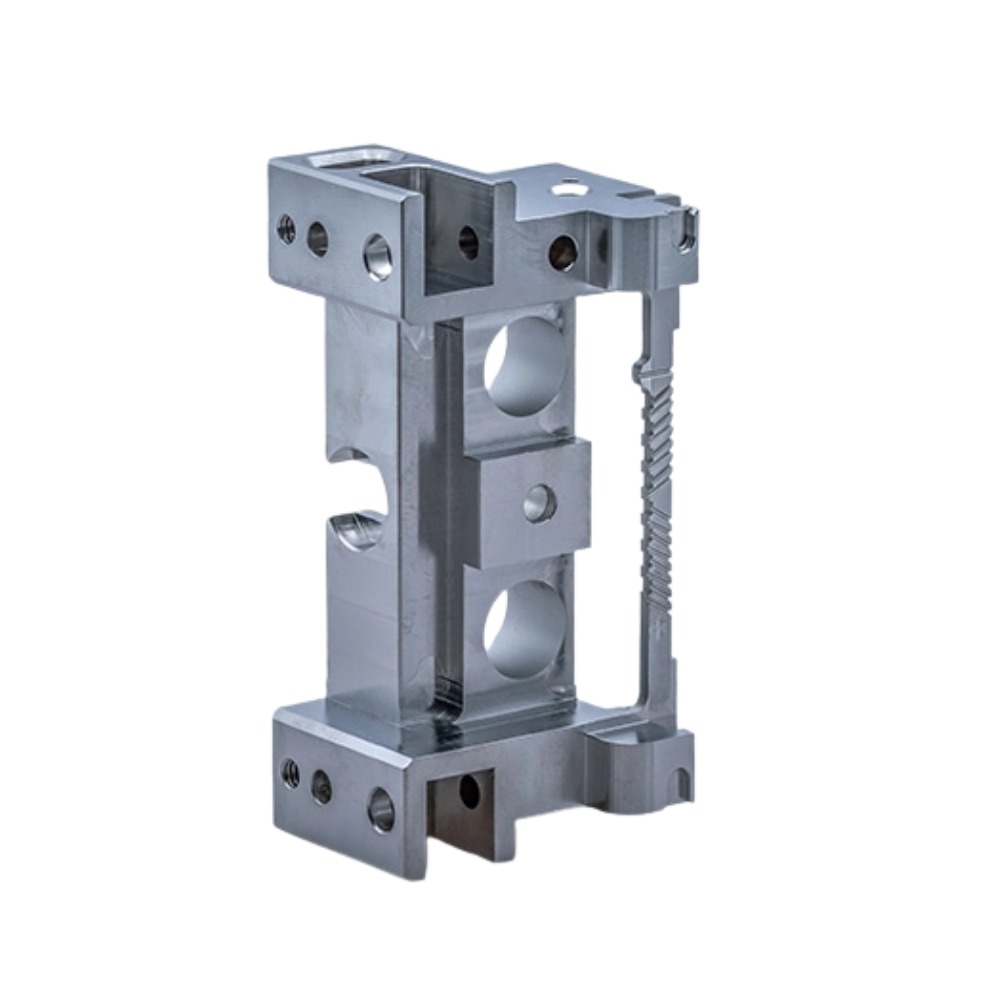

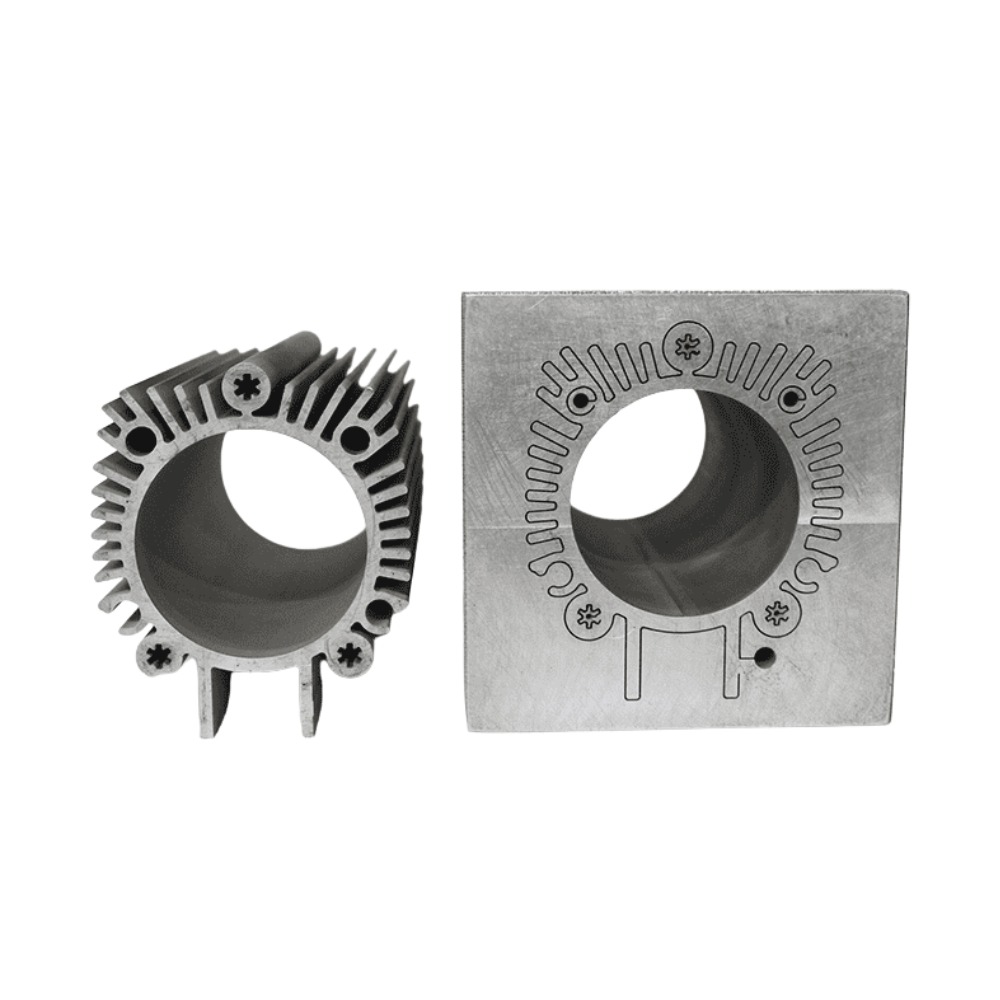

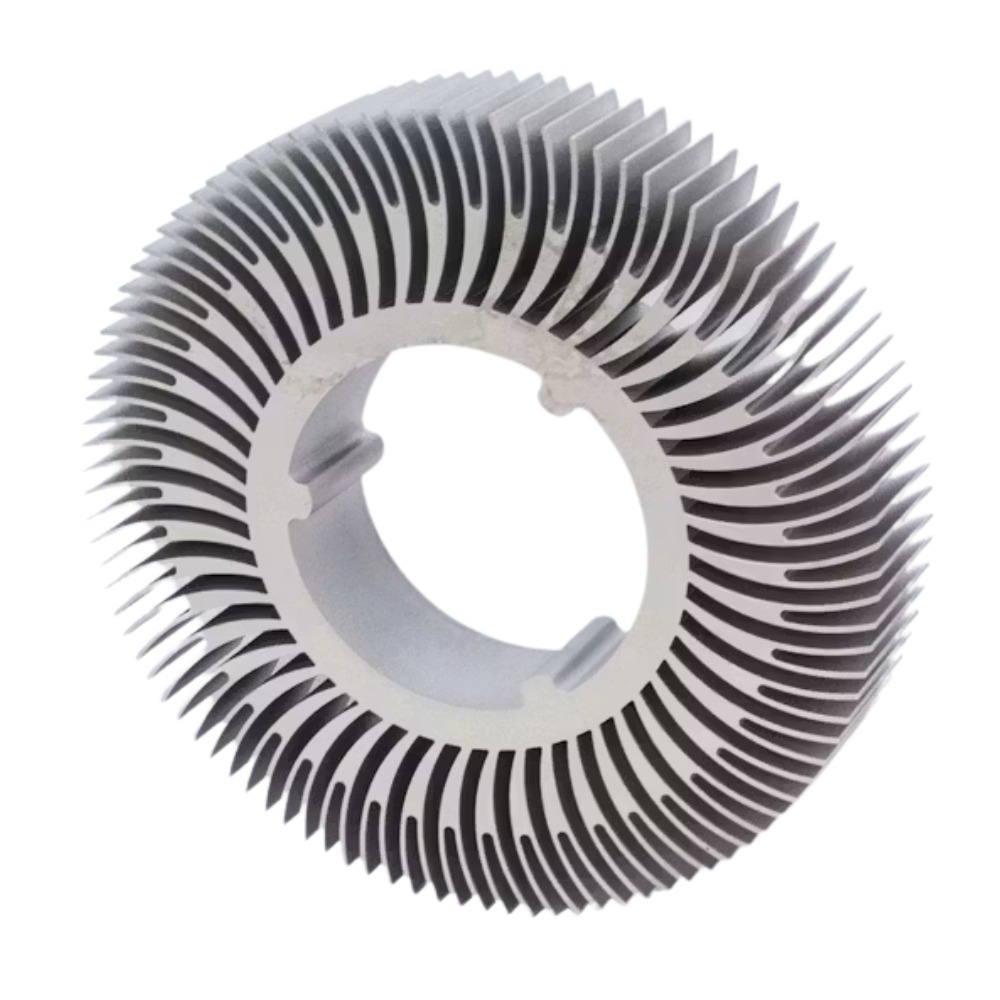

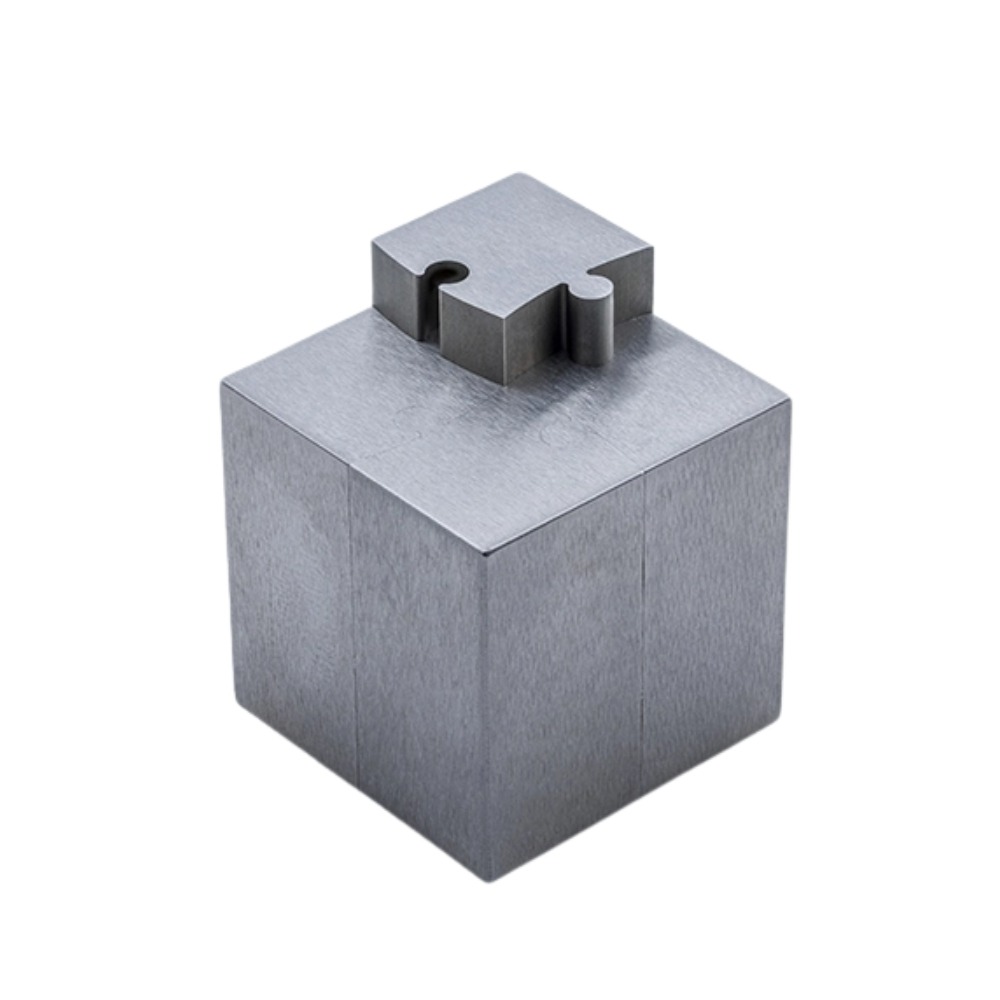

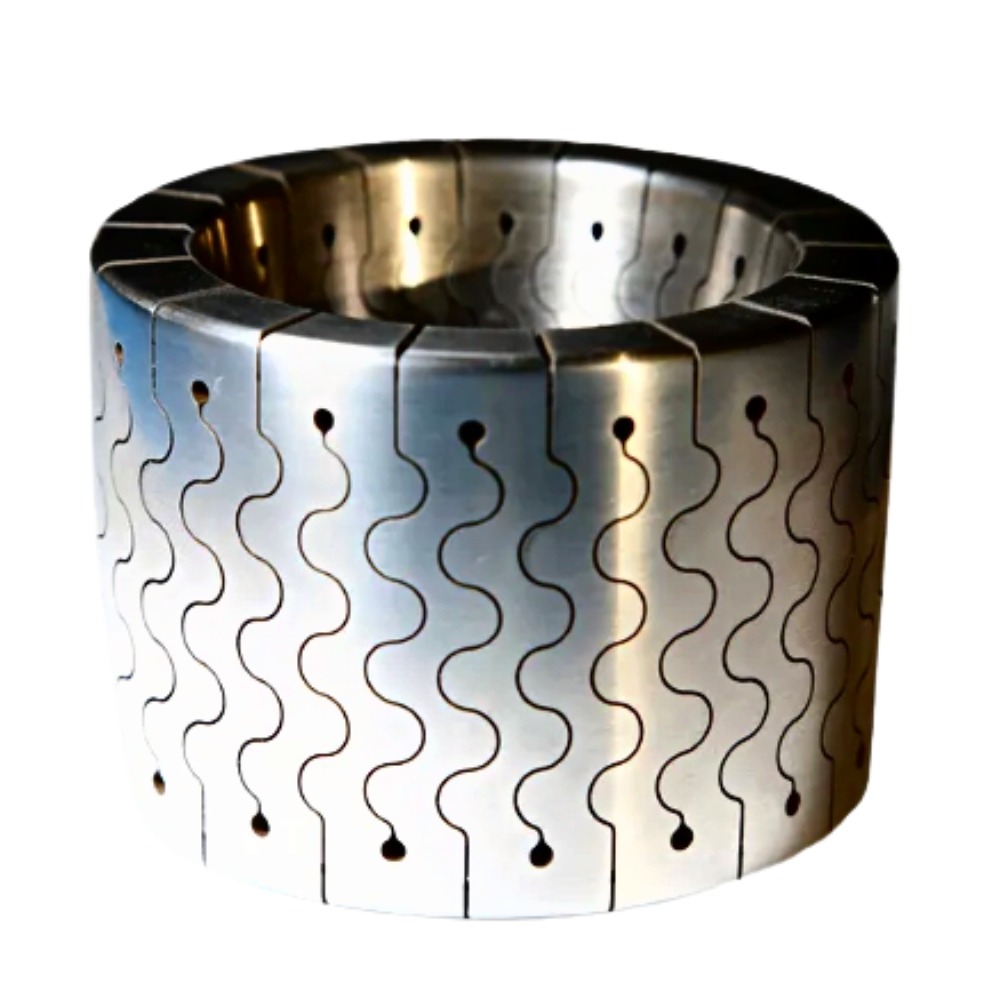

The components shown here were produced at Top Proto using our Wire EDM systems across hardened tool steels, titanium alloys, carbide, and stainless steel. Each part was cut to customer-supplied profile drawings, measured dimensionally against specified tolerances, and delivered with full inspection documentation. The gallery reflects our Wire EDM capability across punch and die profiles, mold inserts, precision instrument components, and structural parts with complex internal geometry.

Industry Expertise at Top Proto

Top Proto has direct production experience across nine industries, each with its own dimensional tolerance standards, material certification requirements, and quality documentation expectations. We do not apply a generic machining approach to every sector — our engineering team reviews your industry-specific requirements before production begins and applies the process controls, material sourcing, and inspection methods appropriate for your application.

Rapid Tooling

For production Wire EDM programs, Top Proto optimizes cutting sequences, wire path programs, and workpiece fixturing to maximize machine utilization and minimize per-part cycle time. For programs where Wire EDM is applied to produce punch and die tooling for subsequent stamping or forming operations, we supply complete tooling sets with matched clearances and profiles produced to your specified accuracy requirements.

Production Tooling

Materials for Wire EDM Services

Wire EDM processes any electrically conductive material regardless of hardness. This makes it the preferred process for hardened tool steels and carbide components where conventional cutting tools would wear rapidly or produce poor edge quality.

What Makes Top Proto Different from Others

Instant Smart Quoting

Get quick pricing and DFM insights to optimize designs and reduce costs.

Global Supply Network

Access our global manufacturing network for reliable solutions of all sizes.

Certified Quality Control

Strict inspection protocols for every part. We ensure 100% accuracy and high standards.

Fast Reliable Delivery

Punctual shipping for all custom orders. Your projects always stay on schedule.

Choose Us for Flexible Pricing and Quick Delivery

At TOP PROTO, we know price and timeline go hand in hand. Our CNC machining services can work around your budget and deliver on your deadline. Get a quote instantly and select the service to meet your requirements.

Competitive pricing with quality always remains.

Fast lead time to complete the project quickly.

Single Pass — Roughing

The fastest EDM condition, producing a surface roughness of Ra 1.2 to Ra 1.6 with a visible recast layer on the cut face. Used for parts where surface condition is not critical or where secondary grinding will be applied.

Two Pass — Semi-Finish

One roughing pass followed by one skim pass, producing Ra 0.4 to Ra 0.8. Removes most of the recast layer from the roughing cut and improves dimensional accuracy on the cut profile.

Three Pass — Finish

Standard finish condition for precision Wire EDM parts. Roughing plus two skim passes producing Ra 0.2 to Ra 0.4. Substantially removes the recast layer and achieves dimensional accuracy consistent with the machine's positioning capability.

Mirror Finish (Multiple Skim Passes)

Four or more skim passes producing Ra 0.1 or below. Applied to mold cavity surfaces, precision gauges, and optical components where the minimum possible surface roughness is required.

Wire EDM Surface Finishes

The surface condition of Wire EDM parts is determined by the number of cutting passes applied. Each additional skim pass removes a finer layer of material, improving surface roughness and dimensional accuracy while removing the recast layer produced by the primary roughing cut.

Made in China. Precision You Can Rely On.

Top Proto operates from Shenzhen, Guangdong, China — the global hub for precision manufacturing, advanced component supply chains, and technology production. Our facility houses over 300 CNC machining centers, injection molding presses, sheet metal fabrication lines, and 3D printing systems operating under a unified ISO 9001:2015, ISO 13485, IATF 16949:2016, and AS9100D certified quality management system. Skilled technicians and meticulous in-process inspection at every production stage ensure that custom metal and plastic parts are delivered to specification — with the dimensional inspection reports to prove it.

300+

Machines Running at Peak Efficiency

0.005mm

Ultra-Fine Tolerances Achievable

24 Hrs

Lead Times Starting From

50+

Engineering Materials Available

Pros of Wire EDM

High Accuracy & Detail:Our milling process ensures that every component is cut to exact specifications, delivering a smooth, high-quality surface finish.
Isotropic Mechanical Strength: Milled components are robust in every direction, making them ideal for high-volume production runs that require consistent structural integrity.
Material Efficiency:Precision cutting paths minimize waste, and any unused material can often be repurposed or recycled efficiently.
Complex Geometries:Advanced 3-axis and 5-axis milling eliminate the need for complex support structures, allowing for intricate designs to be manufactured directly.

Full-Scale Production Manufacturing

With our service, we offer commercially viable manufacturing solutions with the capacity for dependable, ongoing, and repeatable productions. Ranging from hundreds to thousands of units, we are able to produce consistent quantities with fine tolerances, excellent surface quality, and reliable delivery times. Our advanced machining centers allow for strict quality control enabling every batch to meet the performance standards required by your project.

How We Works – 3-Stages Workflow

We guarantee that CNC parts are delivered on time and that the process is completely transparent in the following 3 simple steps:

Upload Your Files

Instant prices with DFM feedback for many file types.

We Manufacture Your Parts

You can select from many materials and methods.

Tracking and Receiving Your Parts

View the QC documentation and inspection photographs.

Frequently Asked Questions

What is Wire EDM and how does it differ from conventional machining?

Wire EDM uses a thin electrically charged wire to erode material through controlled electrical discharges, without mechanical contact between the cutting tool and the workpiece. This means no cutting forces are applied, allowing precise profiles to be cut in hardened materials and fragile geometries without distortion, tool wear, or the thermal damage associated with grinding. Conventional machining applies cutting forces and generates heat at the tool-workpiece interface, limiting achievable accuracy in hard or thin workpieces.

What materials can you cut with Wire EDM?

Wire EDM cuts any electrically conductive material, regardless of hardness. Common materials include hardened tool steels D2, H13, and M2, tungsten carbide, titanium alloys, stainless steel, aluminum, copper, and brass. Non-conductive materials such as ceramics, plastics, and glass cannot be cut by Wire EDM.

What tolerances can you achieve with Wire EDM?

Our Wire EDM systems achieve dimensional tolerances down to +/-0.003mm on cut profiles with skim cut sequences. Position accuracy between features depends on the machine’s positioning system and the fixturing method. Critical tolerances are reviewed during the DFM process and confirmed before production.

What is the minimum internal corner radius achievable?

The minimum internal corner radius is approximately equal to the wire radius plus the spark gap, which is approximately 0.06mm for 0.1mm wire. Sharper corners than this are not achievable with Wire EDM because the wire has a finite diameter. If your design requires a true sharp corner, it should be reviewed during the DFM process.

How long does Wire EDM take compared to conventional machining?

Wire EDM cutting speed is slower than conventional milling for simple geometries in soft materials. However, for hardened materials, complex profiles, and features requiring sharp internal corners, Wire EDM is significantly faster and more accurate than the combination of rough machining, heat treatment, and grinding that would otherwise be required. Lead times for Wire EDM prototype parts are typically three to seven business days depending on part complexity and material.
