CNC Robotics Manufacturing for Strong, Lightweight Structural Components
Top Proto delivers CNC machining, sheet metal fabrication, and 3D printing services for robotics programs requiring precision-machined structural components, actuator housings, end effector components, and sensor mounting systems. We produce robotics parts that balance low weight with high stiffness and dimensional accuracy, covering collaborative robot (cobot), industrial robot, mobile robot, and surgical robot programs from prototype through to production from our facility in Shenzhen, China.
- All uploads are secure and confidential
We Help From Prototyping to Production
Robotics programs require fast design iteration at the prototype stage and consistent dimensional accuracy at production scale. Top Proto supports both requirements with fast turnaround prototyping and documented production processes.
Prototyping
Rapid robotics prototype parts machined from production-equivalent aluminum, titanium, and engineering plastics for early-stage kinematic validation, inertia optimization, and joint geometry confirmation. Turnaround from 3 to 7 business days.
Engineering Validation and Testing
Functional robotics components produced to drawing specification for engineering validation of load capacity, joint geometry, and sensor interface dimensions. Dimensional inspection reports included with every validation batch.
Production Validation and Testing
First article inspection parts for robotics production programs, with CMM measurement of critical joint interfaces, bearing bore tolerances, and mounting feature positions confirming conformance to your approved drawing.
Mass Production
Scalable machining and fabrication of robotics structural components for OEM production programs. Consistent dimensional accuracy maintained across production batches through documented process controls and in-process inspection.
Applications of Robotics Parts
Top Proto produces precision-machined and fabricated components for a broad range of robotics applications across industrial, collaborative, mobile, and surgical robot platforms:
- Robot arm link structures in machined aluminum and carbon fiber composite for low-inertia kinematic chains
- Joint housings, bearing retention features, and gear interface components for actuated robot joints
- End effector structural frames, gripper jaw bodies, and tool mounting flanges
- Servo motor housings, encoder mounts, and harmonic drive interface components
- Mobile robot chassis, wheel drive housings, and suspension bracket assemblies
- Sensor mounting brackets, camera frames, and LiDAR housing components
- Collaborative robot base plates and tool changer interface components
- Surgical robot arm structural components and instrument channel housings in titanium and PEEK
- Exoskeleton structural links, joint pivot housings, and attachment bracket systems
• Custom jigs, fixtures, and calibration tooling for robot assembly and verification programs
Our Services for Robotics Manufacturing
Top Proto provides integrated manufacturing services for robotics component production, covering CNC machining for precision structural parts, sheet metal fabrication for chassis and frames, and 3D printing for design validation and tooling aids.
5-axis machining for complex robotics geometry including curved link profiles, multi-sided joint housings, and compound-angle mounting interfaces that require simultaneous multi-axis cutting for dimensional accuracy.
3-axis and 5-axis milling for robot arm structural links, end effector bodies, sensor mounting brackets, and precision robot base plate components in aluminum, titanium, and engineering plastics.
Precision turning for robot joint pivot shafts, harmonic drive interface components, encoder shaft couplings, and cylindrical actuator housings with tight diameter tolerances.
Comprehensive CNC machining for robotics prototype and production parts with full dimensional inspection and material documentation on every order.
Additive manufacturing for robotics design validation models, lightweight structural components with complex internal geometry, cable management housings, and tooling aids for robot assembly programs.
Fiber laser cutting of robot chassis sheet metal panels, motor mount brackets, and sensor frame blanks in aluminum and stainless steel.
Laser cutting and press brake forming of robot chassis, control electronics enclosures, battery housings, and structural plate assemblies for mobile and industrial robot platforms.
Production of robotics plastic covers, cable management components, and sensor housings in engineering-grade resins from qualified injection mold tooling.

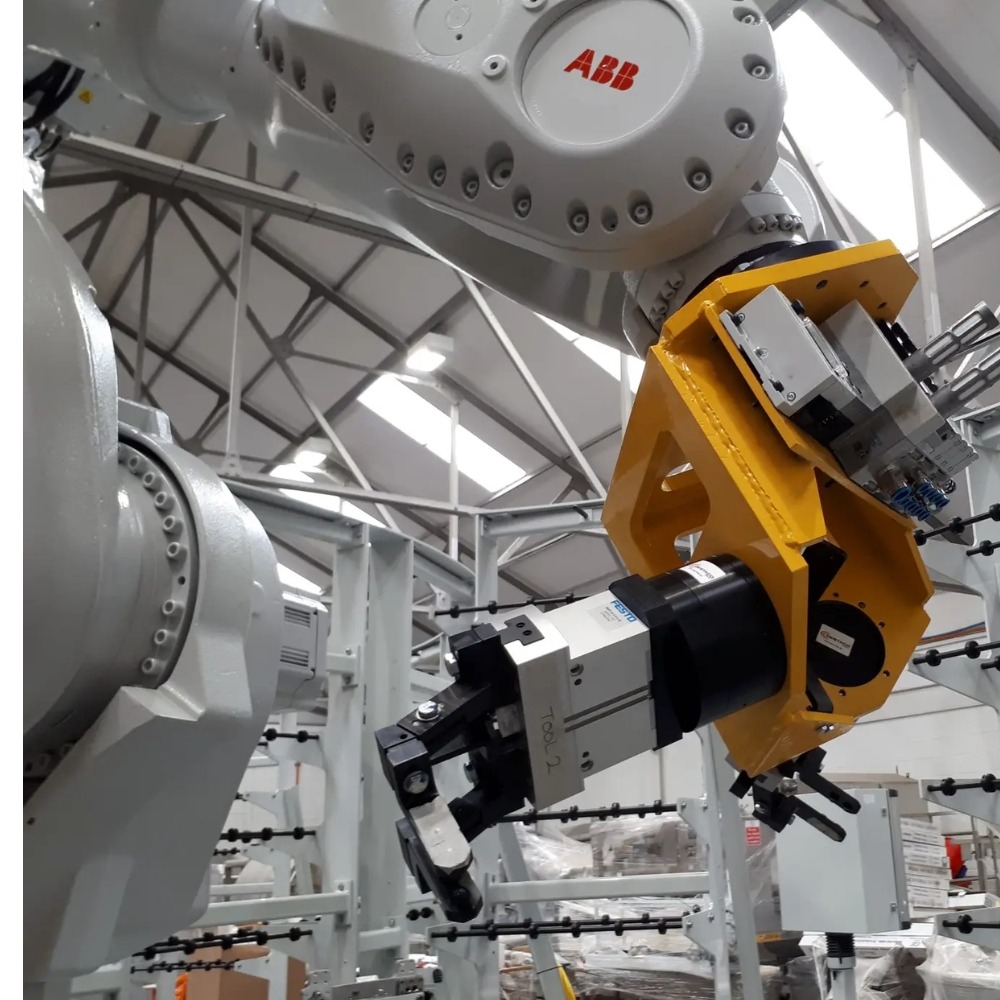

Why Top Proto for Robotics Manufacturing?
Robotics programs require manufacturing partners who understand the unique combination of low weight, high stiffness, tight joint tolerances, and fast development iteration that defines robotics component requirements. Here is how Top Proto specifically supports robotics programs:
Lightweight Structure Expertise
Top Proto engineers review robotics component designs for weight reduction opportunities — thin wall achievability, pocket depth feasibility, and rib geometry — before machining begins. We routinely machine robot arm links and joint housings in 7075-T6 aluminum and carbon fiber composite to achieve the minimum weight consistent with the required stiffness.
Precision Joint Interface Tolerances
Robot joint geometry — bearing bore tolerances, gear interface diameters, and encoder mounting positions — requires machining accuracy that determines the kinematic precision of the assembled robot. Top Proto holds bearing bore tolerances to H7 and shaft tolerances to h6 as standard, with tighter grades available on reviewed cases.
Fast Iteration for Development Programs
Robotics development programs iterate rapidly through design revisions. Top Proto delivers standard robotics prototype parts in 3 to 7 business days and returns DFM feedback with the quote, allowing geometry changes to be implemented and re-ordered within a short cycle without tooling cost.
Complete Structural Assembly Support
Robot systems combine machined metal structural components with sheet metal chassis, fabricated frames, and molded covers. Top Proto produces all of these components within a single facility and can supply complete structural sub-assemblies — robot base plates, link assemblies, and end effector frames — ready for actuator and sensor installation.
Materials and Surface Finishes for Robotics Parts
Materials
Top Proto machines robotics materials prioritized for stiffness-to-weight ratio including Aluminum 7075-T6 for high-stiffness structural links and joint housings, Aluminum 6061-T6 for general robot structural and bracket components, Titanium Grade 5 for lightweight surgical robot and exoskeleton structural components requiring the highest strength-to-weight performance, PEEK for lightweight polymer structural components in weight-critical applications, Stainless Steel 316L for joint pivot shafts and corrosion-resistant mechanism components, and Carbon Fiber Composite (CFRP) for lightweight robot arm link structures.
Surface Finishes
Robotics surface treatments at Top Proto include Type II and Type III anodizing for aluminum structural components providing corrosion resistance and surface hardness, hard anodizing for aluminum joint and bearing housing surfaces subject to contact wear, bead blasting for uniform surface texture on external robot link and housing surfaces, powder coating for robot chassis and frame components requiring color and corrosion protection, and DLC coating for precision sliding surfaces in robot joint mechanisms requiring low friction and wear resistance.
Manufacture Through Latest Technology
Advanced Injection Speed Control
Selective Laser Sintering
Multi-Spindle Lathes
End To End Solutions
Rapid Prototyping
Rapid Prototyping
With our CNC machining service, bringing your ideas is a thing of the past. We create prototypes with the functionality or you to improve your ideas with minimal to no impact on production.
Low Volume Production
Low Volume Production
High-quality production of machined parts is possible without the need for high volumes of parts. Our low-volume production service is tailored with high-volume flexibility to suit your early-stage product needs.
End-to-End Solutions
End-to-End Solutions
Your entire production workflow is managed by us from start to finish. Scheduled delivery is guaranteed for all projects regardless of complexity.
How We Works – 3-Stages Workflow
We guarantee that CNC parts are delivered on time and that the process is completely transparent in the following 3 simple steps:
Upload Your Files
Instant prices with DFM feedback for many file types.
We Manufacture Your Parts
You can select from many materials and methods.
Tracking and Receiving Your Parts
View the QC documentation and inspection photographs.
Frequently asked questions
What's your lead time for humanoid robot prototype parts?
From 3 business days for standard aluminium geometry. Complex 5-axis parts or titanium typically 5–7 days. If you’re in a sprint before a demo or investor review, flag it in the RFQ — we’ll tell you honestly what’s achievable rather than quoting a lead time that slips.
Can you machine harmonic drive components to the required tolerances?
Yes. Harmonic drive geometry requires tight bore tolerances and specific surface finish on the wave generator contact surface. We machine flex spline housings, circular spline bores, and wave generator shafts regularly. Confirm the specific tolerance callouts and surface finish requirements on the drawing — if anything is at the edge of our verified capability, we’ll tell you at quote stage rather than attempt and miss.
How do you handle DFM feedback between design iterations?
Every quote includes a DFM review — wall thickness flags, bore depth assessments, feature accessibility. When you upload a revised STEP after changing actuator housing geometry, you get DFM notes with the quote. An engineer reviews the file. The feedback comes with the number.
Should I use 7075 or titanium for joint links?
Depends on the weight budget and the loading. 7075-T6 at 572 MPa tensile is right for most joint links — significantly stronger than 6061, lighter than titanium, much cheaper to machine. Titanium Grade 5 is warranted where the cross-section needs to be small, the fatigue cycle count is high, or corrosion resistance matters at the joint interface. The cost difference is real — titanium machining takes longer and material cost is 5–8× aluminium. We’ll give you a direct cost comparison if the decision is live.
Can you match the surface finish on external visible robot components?
Yes. External visible surfaces — covers, links, sensor mounts — get bead blast plus anodize as standard for a consistent matte or satin result. If a specific colour, gloss level, or texture is required for a product launch or investor demo, specify it in the RFQ. For primary A-surfaces, we agree cosmetic acceptance criteria before the batch runs.
Can you scale from prototype to pre-production without a supplier change?
Yes — that’s deliberate. Prototype geometry, validation batches, and pre-production all run through the same facility with the same fixture design and tooling plan. When your geometry locks and volumes increase, the transition is a quantity change, not a supplier change. No re-approval, no new supplier audit, no re-running DFM from scratch.
