FDM 3D Printing Service Industrial Fused Deposition Modeling

Top Proto provides industrial fused deposition modeling (FDM) 3D printing for durable thermoplastic parts with tolerances of ±0.25 mm and build volumes up to 914 × 610 × 914 mm. Our Stratasys FDM systems extrude production-grade thermoplastics including ABS, polycarbonate, nylon, ULTEM, and PEKK layer by layer through heated nozzles in enclosed, temperature-controlled chambers. FDM produces the largest single-build parts of any polymer 3D printing process and offers the widest range of engineering-grade and high-performance thermoplastics.

Upload your CAD file for an instant FDM quote. Standard orders ship within 3–5 business days.

Get instant pricing, project lead times, and DFM feedback.

Accepted File Types: STEP, STP, SLDPRT, STL, DXF, X_T, X_B, IPT, CATPART, PRT, SAT, 3MF, JT

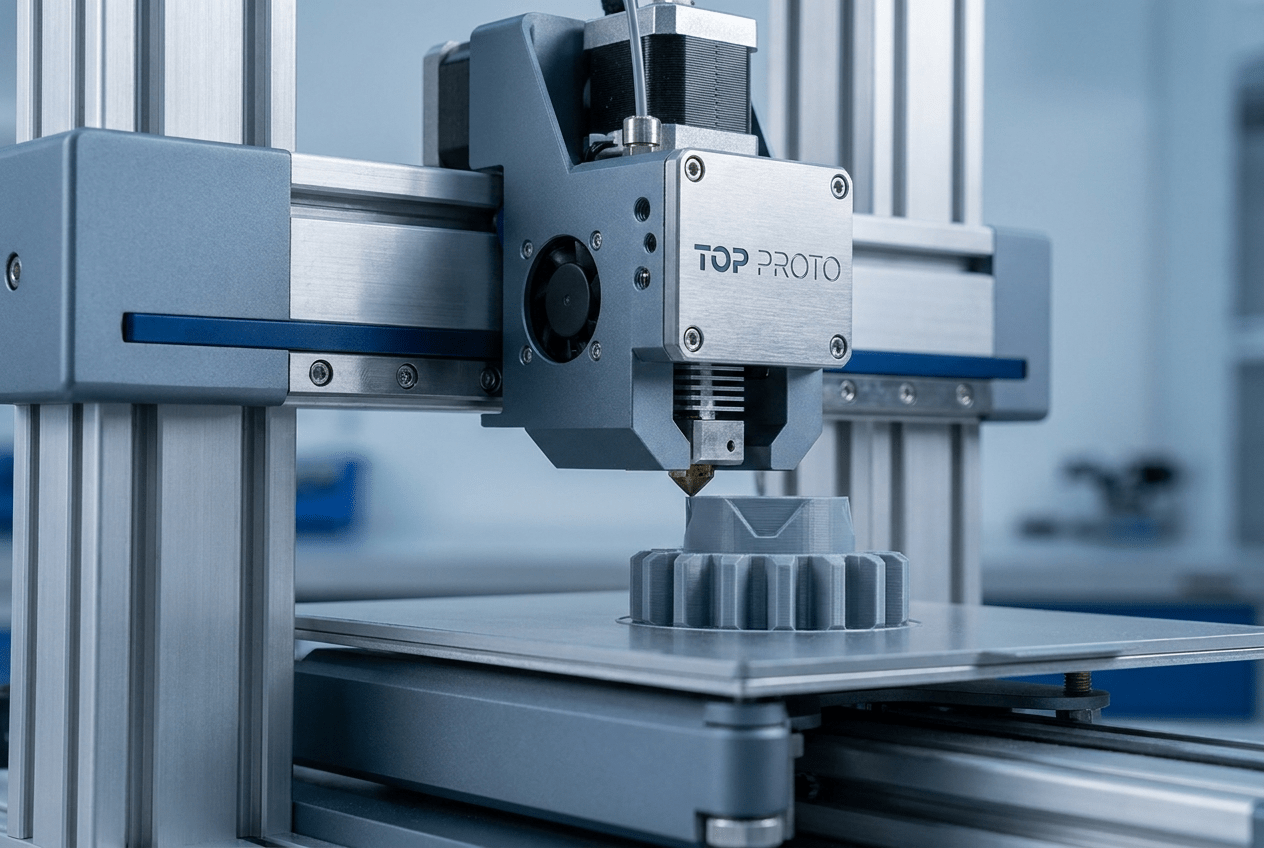

What Is Fused Deposition Modeling (FDM)?

Fused deposition modeling is a material extrusion process that builds three-dimensional objects by melting thermoplastic filament and depositing it through a heated nozzle onto a build platform, one layer at a time. The build material is fed as a continuous filament from a spool, heated to a semi-molten state, and extruded through a precision nozzle that traces the cross-section of each layer. A second nozzle deposits soluble support material for overhangs and internal cavities.

Industrial FDM systems operate in enclosed, heated build chambers that maintain uniform temperature across the entire build volume. This controlled environment reduces thermal gradients between deposited layers, minimizing warpage, improving layer adhesion, and producing parts with more consistent mechanical properties than open-frame desktop printers.

After printing, soluble supports dissolve in a chemical bath, leaving clean internal channels and complex undercuts without manual support removal. Parts can then be sanded, machined, painted, plated, or bonded for final application.

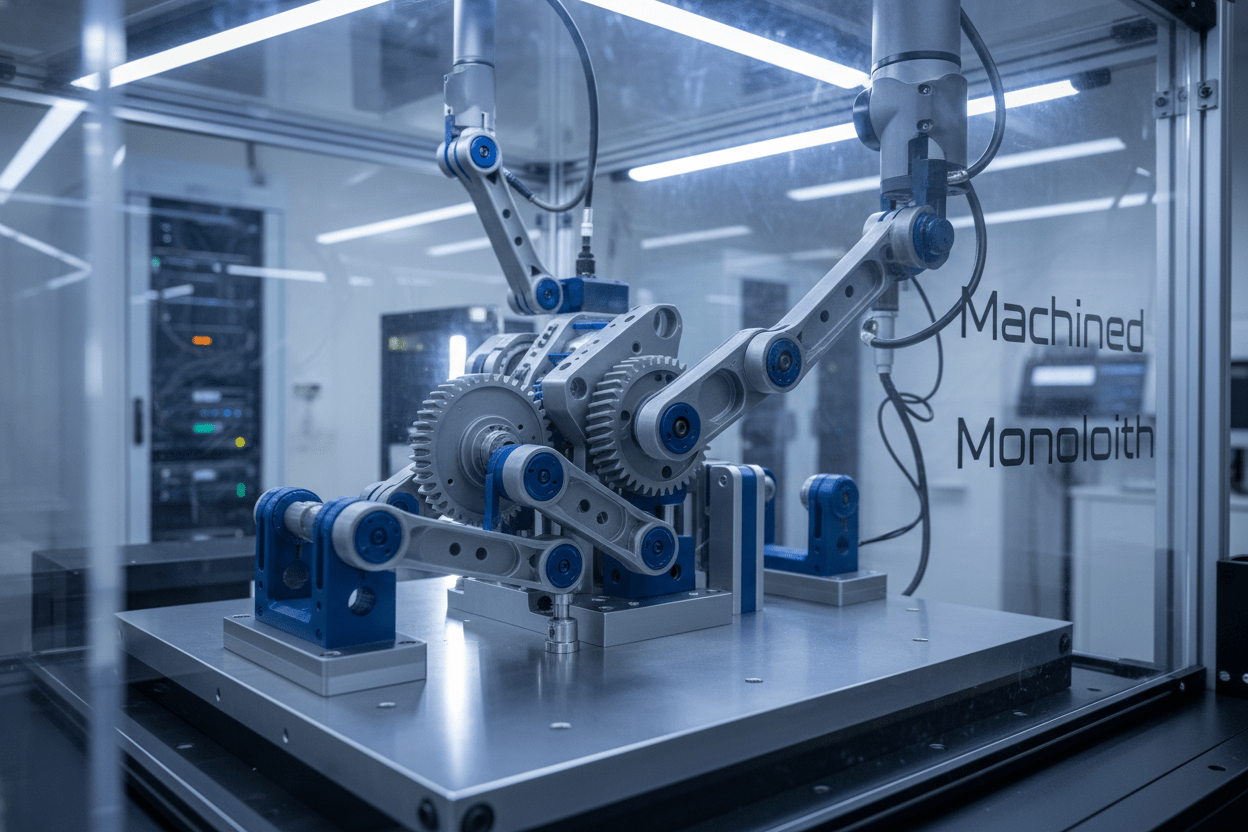

Large-Format Prototyping

Full-scale prototypes of housings, enclosures, panels, and structural components up to 914 mm in a single piece. Large-format FDM eliminates assembly of sub-components for faster design evaluation.

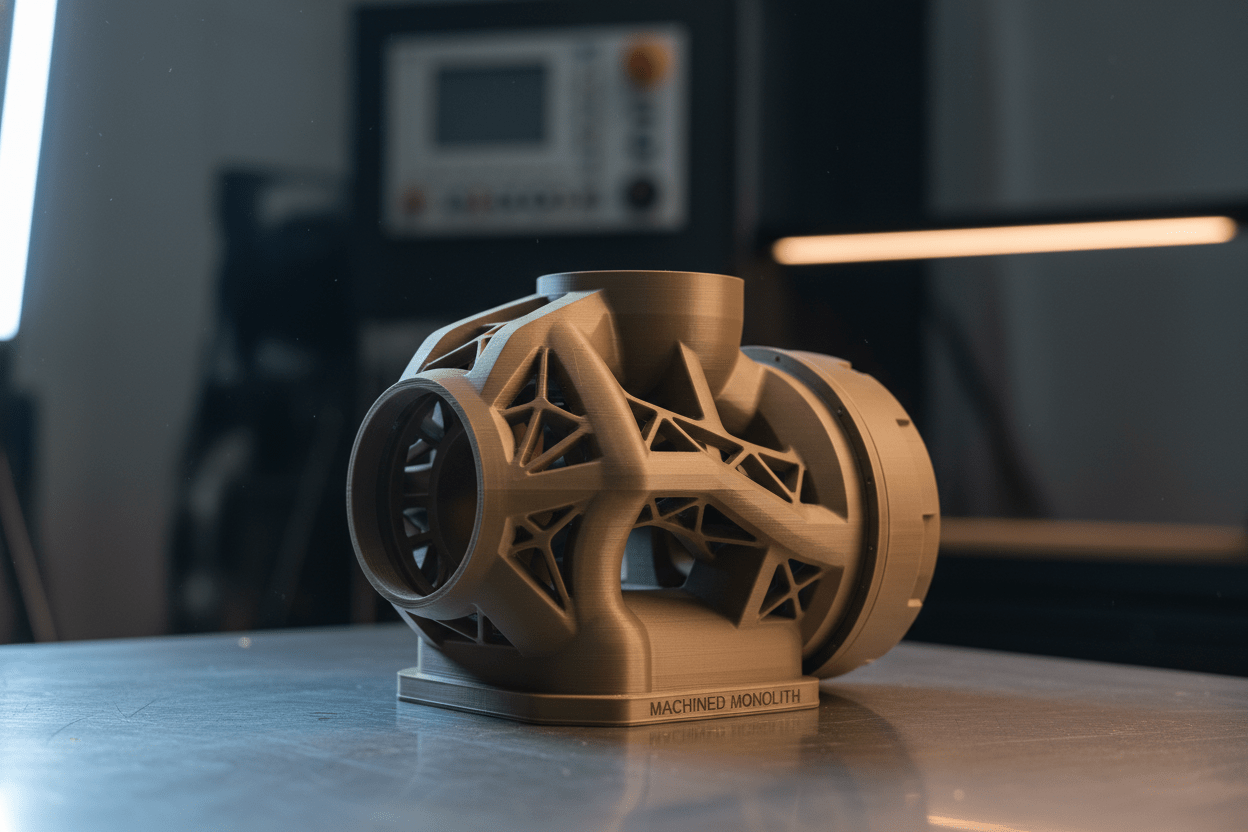

Production Tooling

Assembly jigs, check fixtures, drill guides, and layup tools printed in high-performance thermoplastics. FDM tooling withstands factory-floor conditions and replaces machined aluminum tooling at a fraction of the cost.

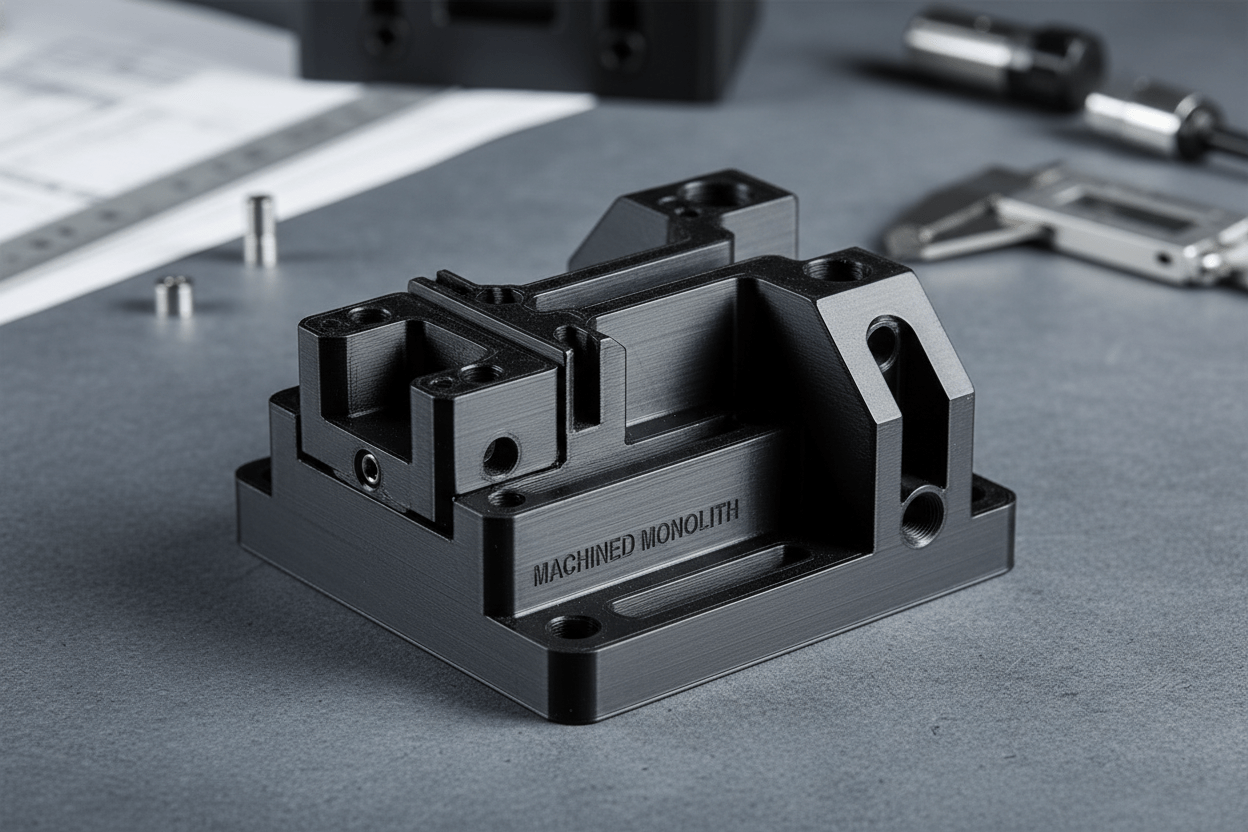

High-Temperature Applications

ULTEM and PEKK parts for aerospace, automotive, and industrial applications requiring continuous service temperatures above 150°C and FST (flame, smoke, toxicity) compliance.

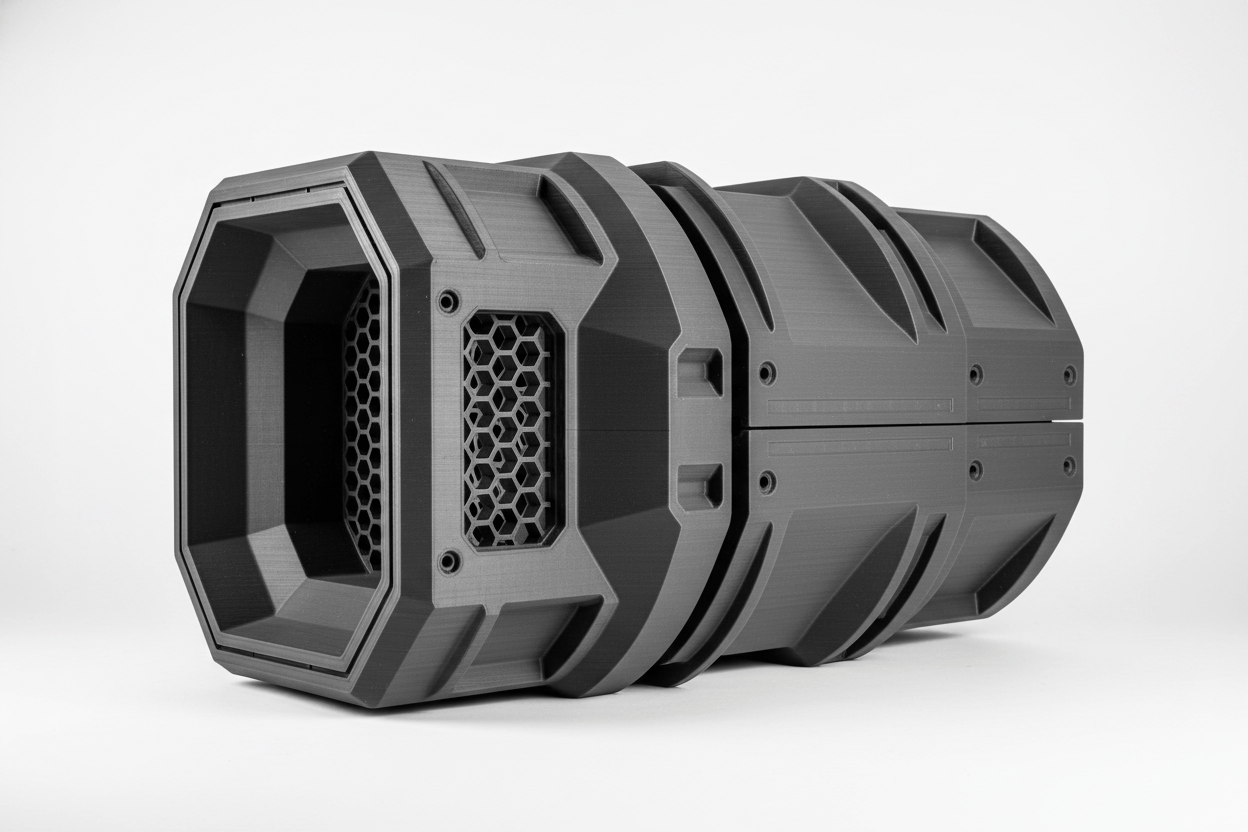

Functional Testing

Mechanical prototypes in ABS, PC, and nylon for load testing, impact testing, and environmental exposure validation. FDM thermoplastics provide repeatable, predictable performance under real-world conditions.

Our FDM 3D Printing Services

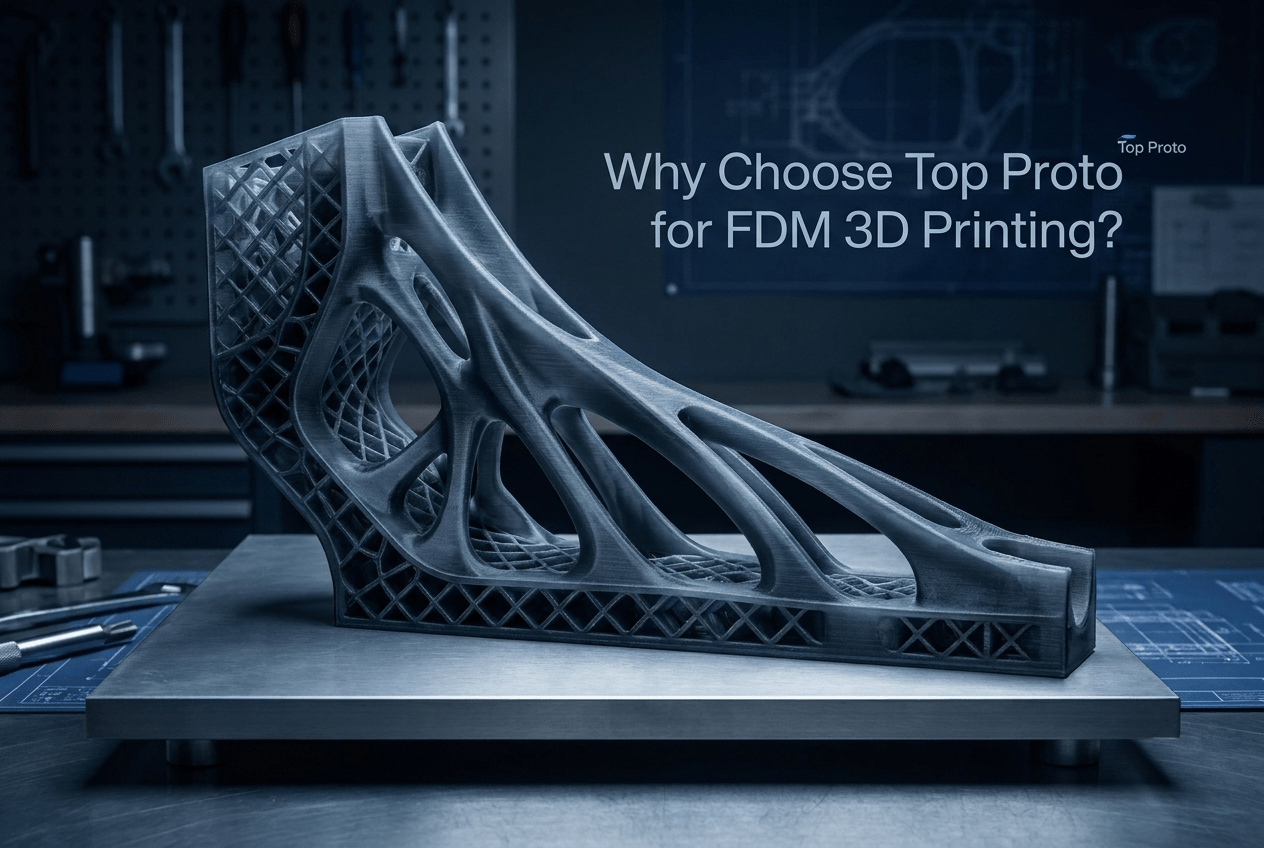

Why Choose Top Proto for FDM 3D Printing?

Largest Build Volume

Our Stratasys Fortus 900MC platform prints parts up to 914 × 610 × 914 mm in a single build. This eliminates the need to split large assemblies into bonded sections, preserving structural integrity.

Real Engineering Thermoplastics

FDM works with production-grade materials including ABS, PC, nylon, ASA, ULTEM 9085, ULTEM 1010, PEKK, and carbon-filled options. These are the same thermoplastics used in injection molding.

Soluble Support System

Dual-extrusion with soluble support material enables complex internal geometries, deep cavities, and intricate overhangs. Supports dissolve completely in an alkaline bath, leaving clean surfaces.

Enclosed Heated Chamber

Temperature-controlled build chambers maintain uniform thermal conditions throughout the print, reducing warpage and improving layer adhesion for consistent mechanical performance in all orientations.

SLA Capabilities

Parameter	Specification
Technology	Material Extrusion (Fused Deposition Modeling)
Build Volume (Max)	914 × 610 × 914 mm
Layer Thickness	127 – 330 μm
Tolerance (Standard)	±0.25 mm or ±0.3% (whichever is greater)
Minimum Wall Thickness	1.0 mm (1.5 mm recommended)
Minimum Feature Size	1.0 mm
Surface Finish	Ra 8 – 20 μm (as-printed, layer-dependent)
Support System	Soluble (SR-30, SR-110, SUP706)
Post-Processing	Support dissolution, sanding, machining, painting, plating, bonding
File Formats	STL, STEP, IGES, OBJ, 3MF

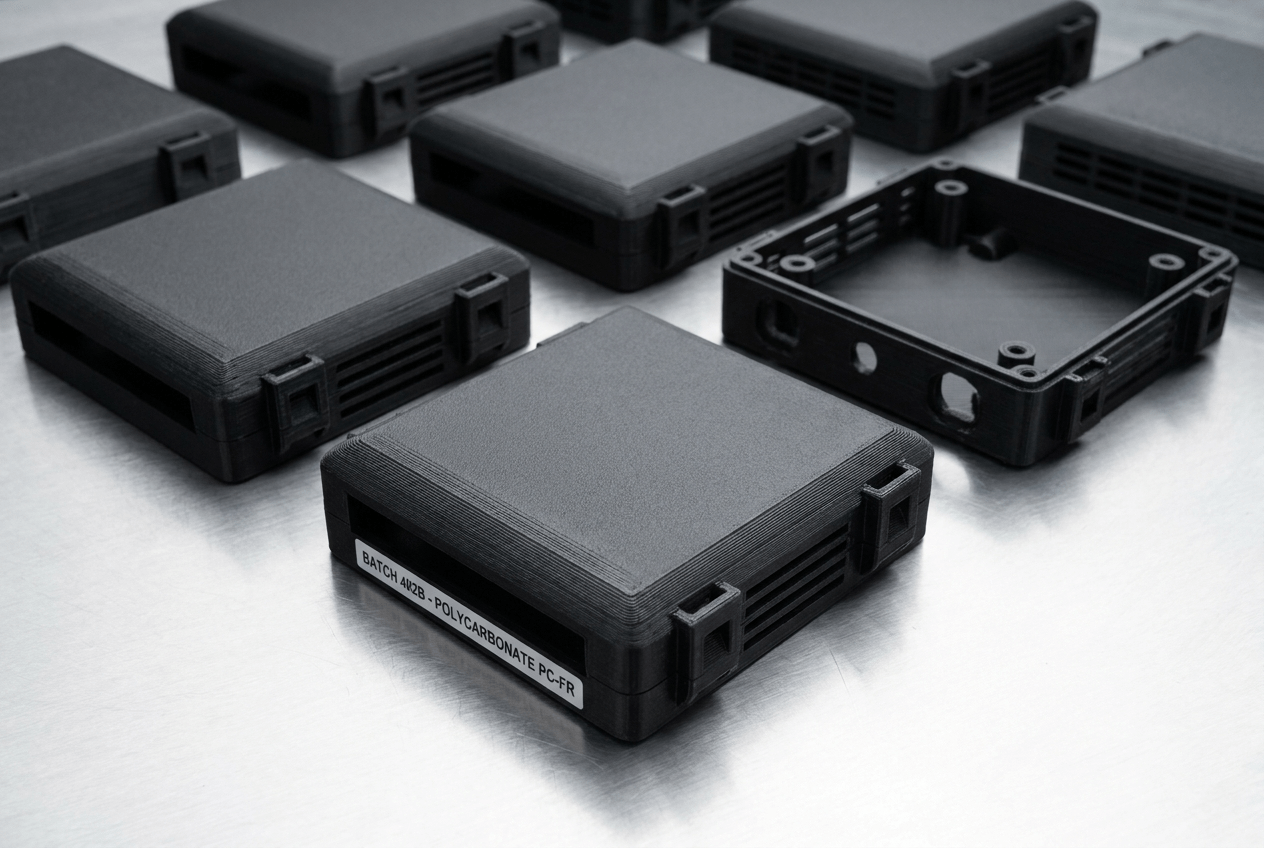

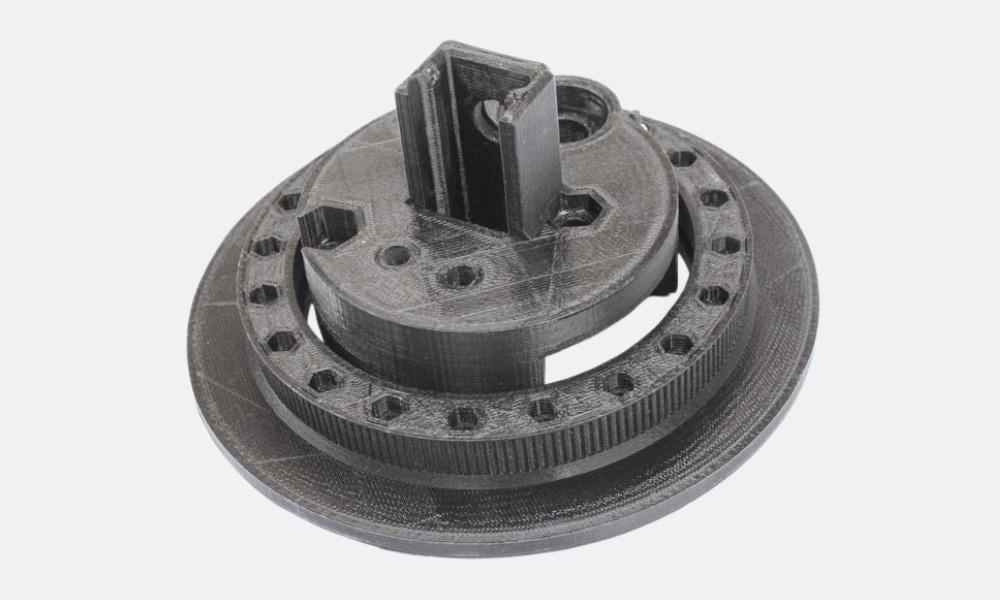

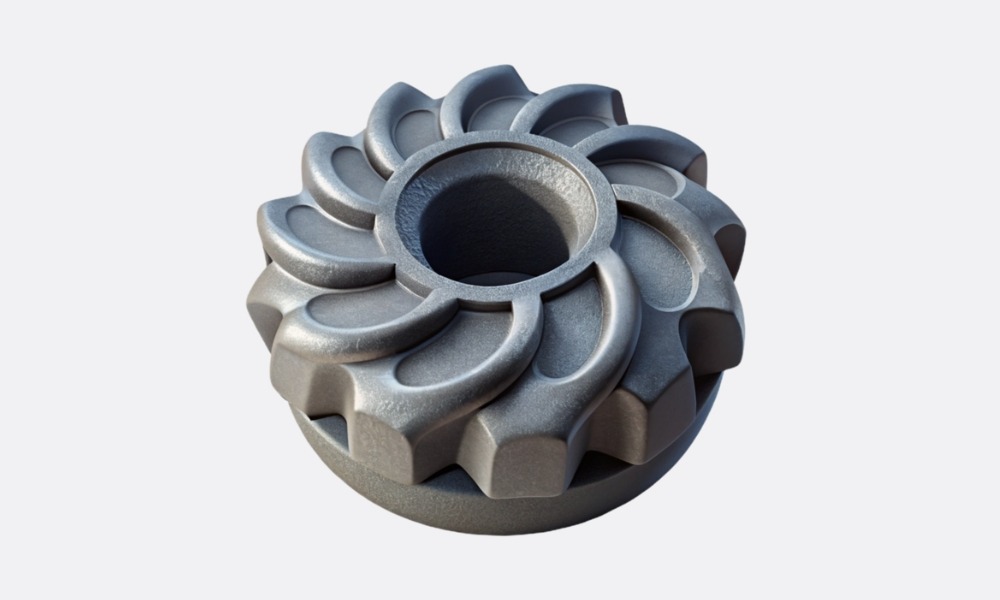

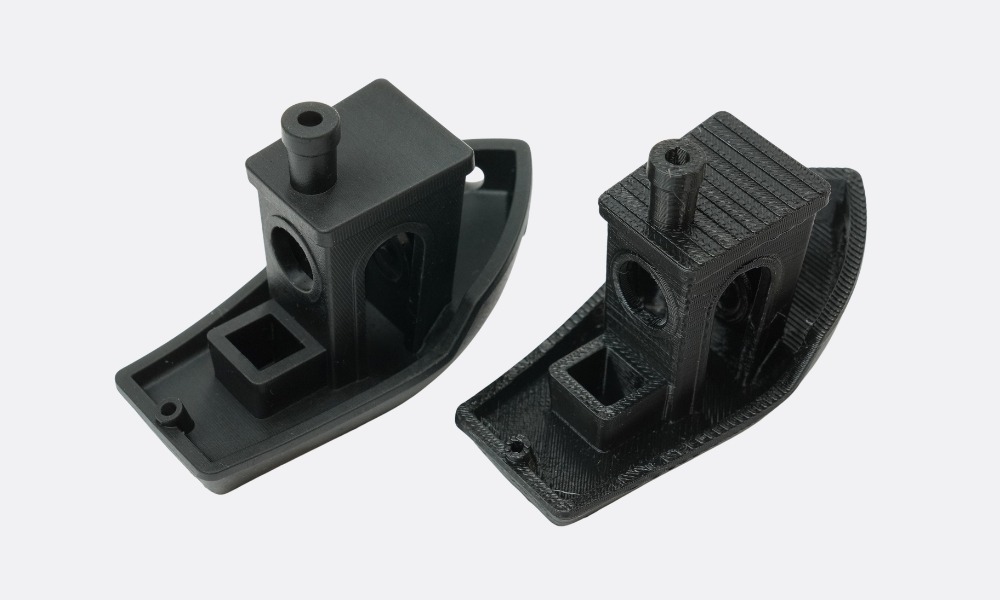

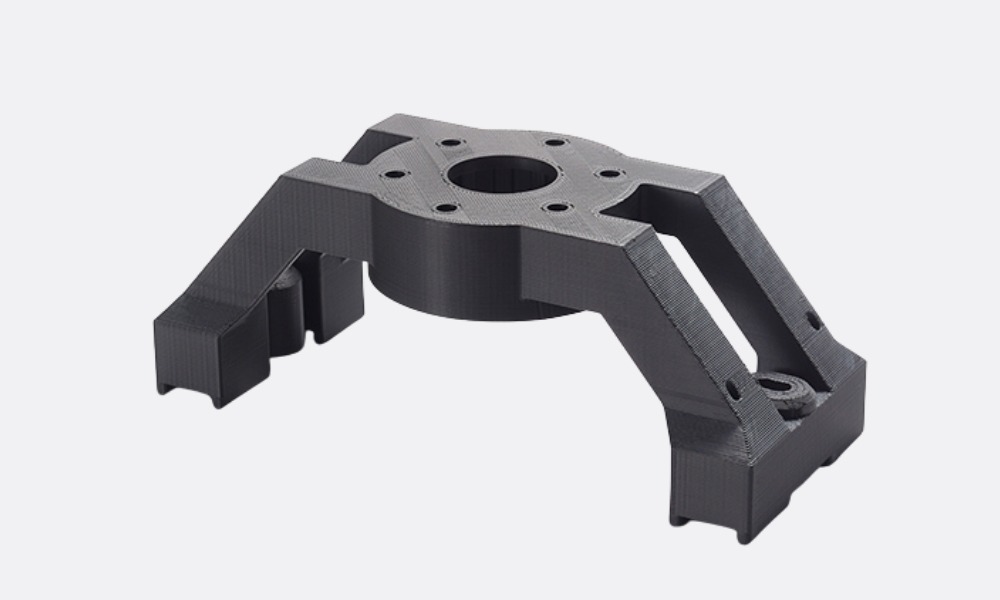

FDM Part Gallery

Our FDM portfolio includes full-scale automotive dashboard prototypes in ABS at 800 mm length, aircraft interior duct assemblies in ULTEM 9085 certified to FAR 25.853 flame-smoke-toxicity requirements, production assembly jigs in Nylon 12 CF that replaced machined aluminum fixtures at 40% of the cost, and large-format architectural models with internal structural reinforcement. FDM’s combination of material breadth, build scale, and functional performance makes it the standard process for large, durable thermoplastic parts.

FDM for Rapid Tooling

FDM thermoplastics are the leading additive manufacturing material class for production tooling applications. Assembly jigs, check fixtures, drill guides, and layup mandrels printed in ABS, PC, or Nylon 12 CF withstand thousands of production cycles. ULTEM and PEKK tooling operates at elevated temperatures for composite layup and autoclave applications. FDM tooling is typically produced at 60–80% lower cost and 70–90% faster lead time than equivalent CNC-machined aluminum tooling.

FDM for Production Parts

Industrial FDM produces certified production parts for aerospace, defense, rail, and medical applications. ULTEM 9085 carries FST certification for aircraft cabin interiors. ULTEM 1010 is biocompatible and sterilizable for medical device applications. PEKK meets outgassing requirements for space hardware. These certifications, combined with FDM’s repeatability and traceability, make it the established additive manufacturing process for regulated-industry production components.

Frequently Asked Questions — FDM 3D Printing

What is the maximum part size for FDM printing?

Our largest FDM platform builds parts up to 914 × 610 × 914 mm in a single piece. Parts exceeding this volume can be printed in sections and assembled with structural adhesive, maintaining load-bearing capability across the bond.

Are FDM parts as strong as injection-molded parts?

FDM parts in standard materials typically achieve 70–85% of injection-molded mechanical properties due to inter-layer adhesion characteristics. In the Z-axis (vertical build direction), strength can be 30–50% lower than in-plane values. Enclosed heated chambers and optimized build parameters minimize this anisotropy.

What surface finish should I expect from FDM?

As-printed FDM parts show visible layer lines with surface roughness of Ra 8–20 μm depending on layer thickness. Post-processing through sanding, vapor smoothing, or painting produces smooth visual surfaces comparable to molded parts.

Which FDM material is best for high-temperature applications?

ULTEM 1010 offers the highest heat deflection temperature at 216°C. ULTEM 9085 provides FST compliance for aerospace interiors with HDT of 153°C. PEKK (Antero 800NA) combines high-temperature performance with chemical resistance for demanding industrial environments.

Can FDM replace CNC machining for tooling?

For many production tooling applications, yes. FDM fixtures and jigs in Nylon 12 CF and ULTEM replace machined aluminum at significantly lower cost and faster delivery. However, for tooling requiring metal-level hardness, thermal conductivity, or tolerances below ±0.05 mm, CNC-machined metal tooling remains necessary.
